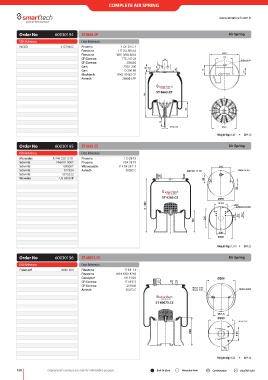

P. 150
COMPLETE AIR SPRING
www.smarttech.com.tr
Order No 60030194 ST 8663.CP Air Spring
OEM References Cross References
IVECO 41270462 Phoenix 1 DF 20 G-1
Firestone 1 T 15 LNR 4.5
Firestone W01 M58 8663 Ø228
CF Gomma 1 TS 270-23 45 130 M16x1.5 6H
CF Gomma 206686
Gart 290.1.390 60 10° 20
Gart D 290 BR 38 78 57
Blacktech RML 70462 CP
Airtech 36686 CPP
ST 8663.CP
300
120
75
M14x2 6g Ø195
Weight (Kg): 5,88 QIP: 30
Order No 60030195 ST 9283.CS Air Spring
OEM References Cross References
Mercedes A 946 328 15 01 Phoenix 1 D 28 F3
Schmitz FA6041-0087 Phoenix 1 DK 28 F3
Schmitz 1288087 Vibracoustic V 1 DK 28 F-3 210
Schmitz 017924 Airtech 30283 C 2xM12x1.75 6G M22x1.5 6H
Schmitz S015323
Weweler US 04030P 36 95
25
ST 9283.CS Ø286
h : 420 141.5 Ø10
8xM12x1.75 6H
220 30 50 70.7
182
100
Ø260
Weight (Kg): 13,18 QIP: 22
Order No 60030196 ST 40073.CS Air Spring
OEM References Cross References
Fruehauf M001464 Firestone 1T19L-14
Firestone W01-M58-8762
Goodyear 1R13-803 Ø286
CF Gomma 1T 19 E-3 37 36
CF Gomma 201840
Airtech 30073 C M20x1.5 6G M12x1.75 6G
M12x1.5 6H
ST 40073.CS
157.5
Ø259
M12x1.75 6G
208 141
71
Weight (Kg): 8,36 QIP: 28
150 Bolt Or Stud Threaded Hole Combination Stud Air Inlet
